Motion Raceworks 1978-88 G Body Manual Master Cylinder Kit 20-200
Note: this kit has an angled plate to flatten out the master cylinder for proper fluid level and connection.

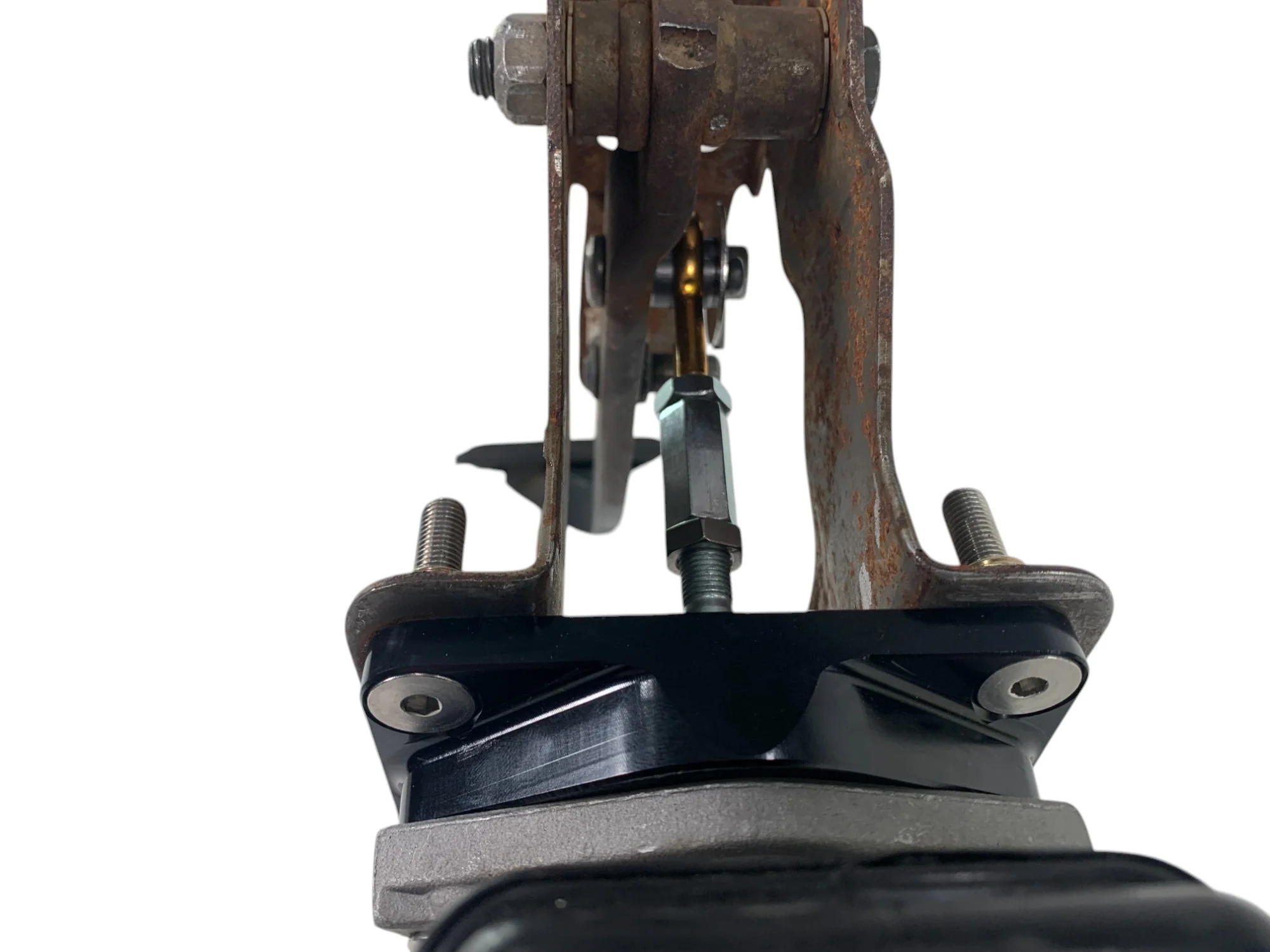

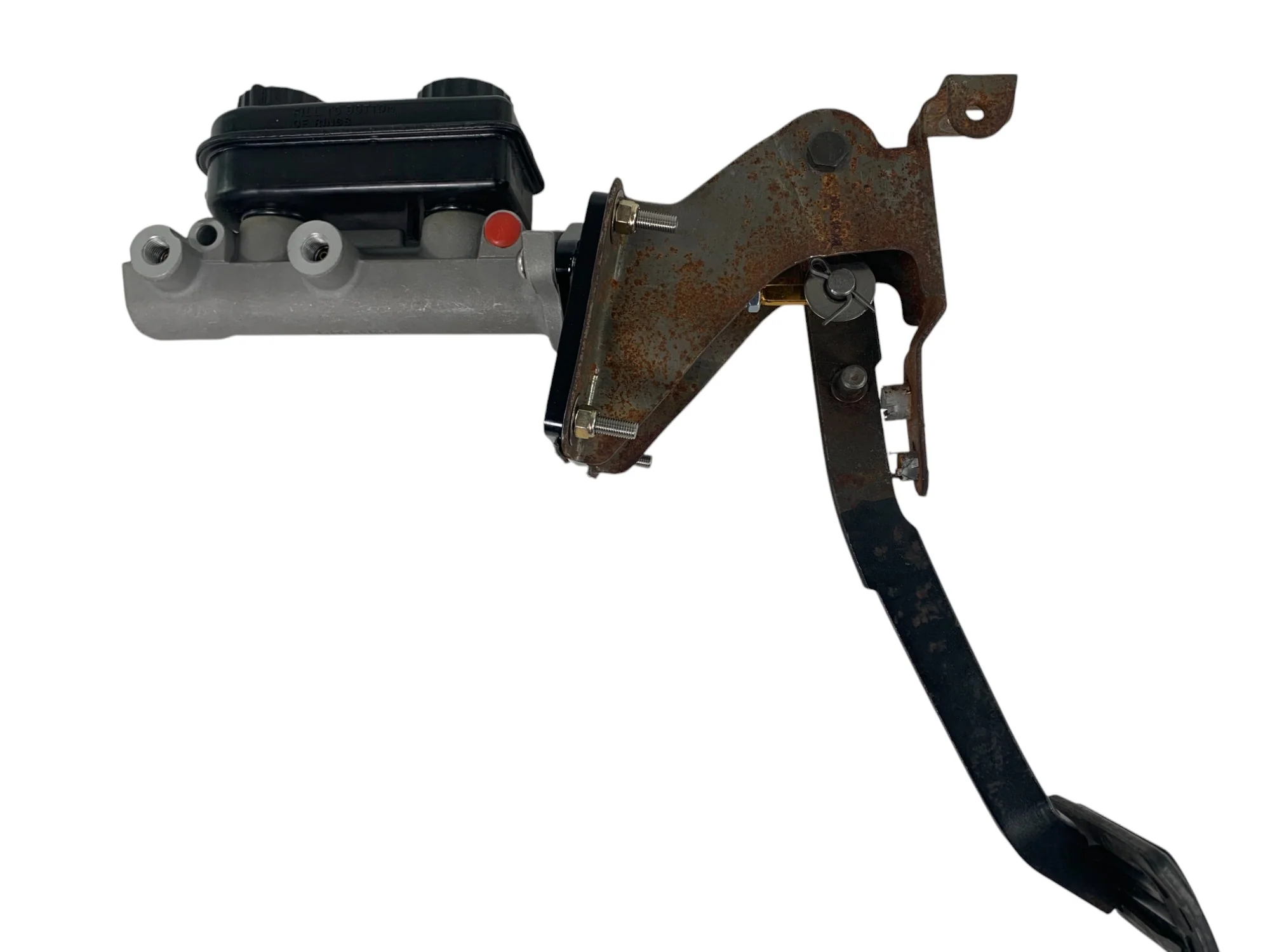

Our Manual Brake Master cylinder kit utilizes a billet firewall mounting plate CNC'd from 6061 Aluminum. This plate is designed to utilize a Strange Engineering Mopar Dual Master Cylinder. This requires you to drill your brake pedal for the master cylinder pushrod Kit includes all hardware necessary, Strange Engineering Mopar Dual Master Cylinder.
Note: Master cylinder need to match the brake system they are being used with. To access our Brake Calculator page to determine what is best for your vehicle click the following link: https://www.motionraceworks.com/pages/brake-system-setup-and-calculations

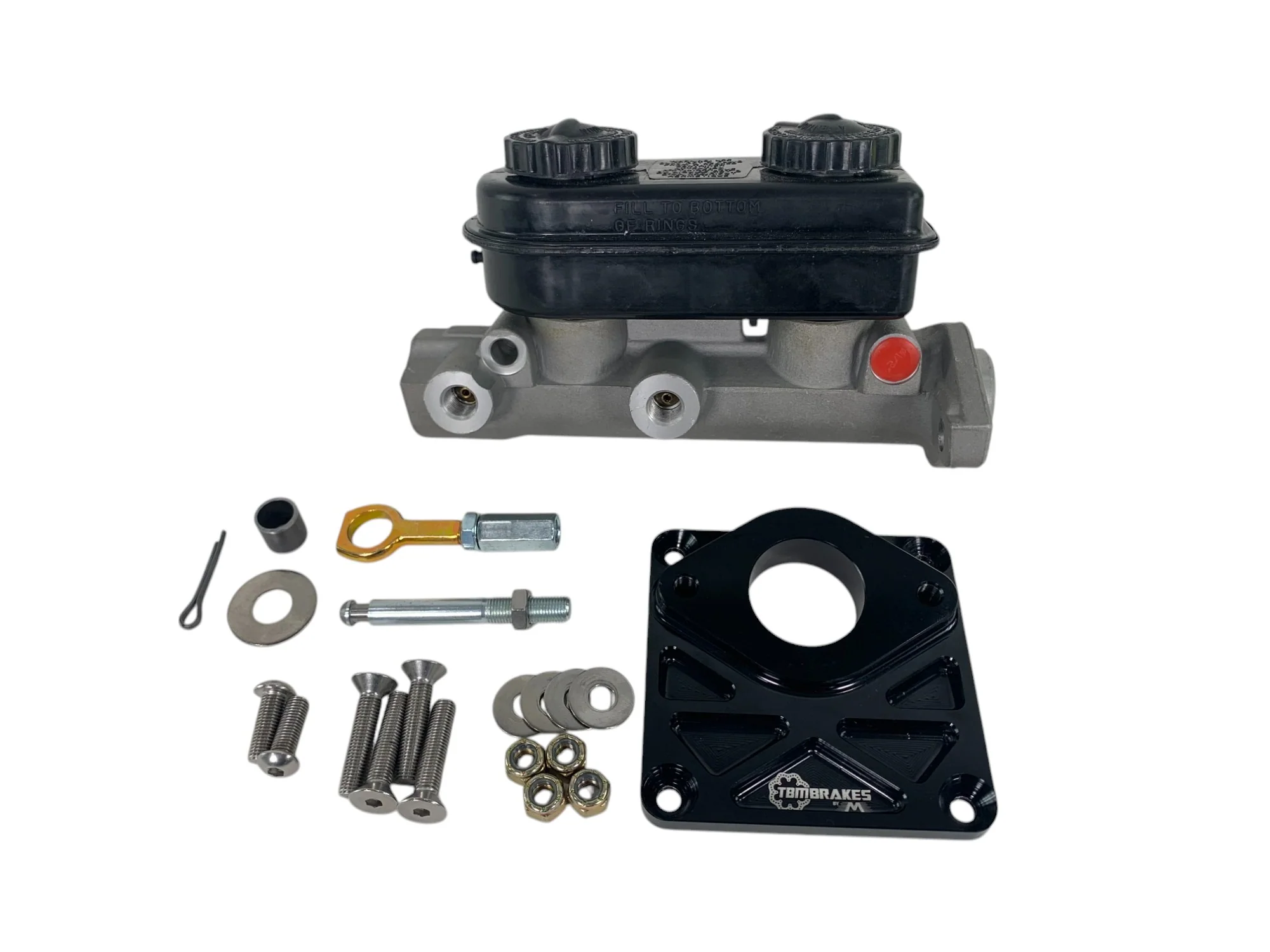

Included:
- 6:1 Pedal Ratio optimized for manual brakes
- Billet Manual Master Cylinder Firewall Plate
- Strange Dual Mopar Master Cylinder 1.032" Bore
- Hardware for Installation
- Fittings for Master Cylinder
*This kit does not have a push rod included, it uses the stock push rod
*Note: Slight modification to existing bolt holes on firewall needed to accommodate brake plate. Additionally factory pedal assembly needs to be removed and studs going through firewall to hold factory master cylinder need to be removed from pedal assembly by cutting as bolts will be put in place*
Note: This kit improves the brake pedal ratio for use with manual brakes vs. power brakes. While sharing the original bolt pattern, this requires you to modify the existing hole where the master cylinder goes through the firewall to accommodate the stronger ratio.
Note: Due to the difference in pedal travel based off of the required manual master cylinder ratio, brake light switch may require modification to work properly based off of pedal position.
Note: We recommend a 6-7:1 pedal ratio on all manual brake systems
Watch this video to understand the proper pedal ratio and master cylinder size for your vehicle
Do's and Don'ts for proper master cylinder setup: Must Watch!
