Gen V LT 5 Stage Billet Dry Sump Pan / Pump Combo Kit

Dry sump oiling systems are very beneficial in high horsepower applications, however, the use of external scavenge lines connected to your engine can create multiple leak points, add crowding issues, and are generally difficult to connect.

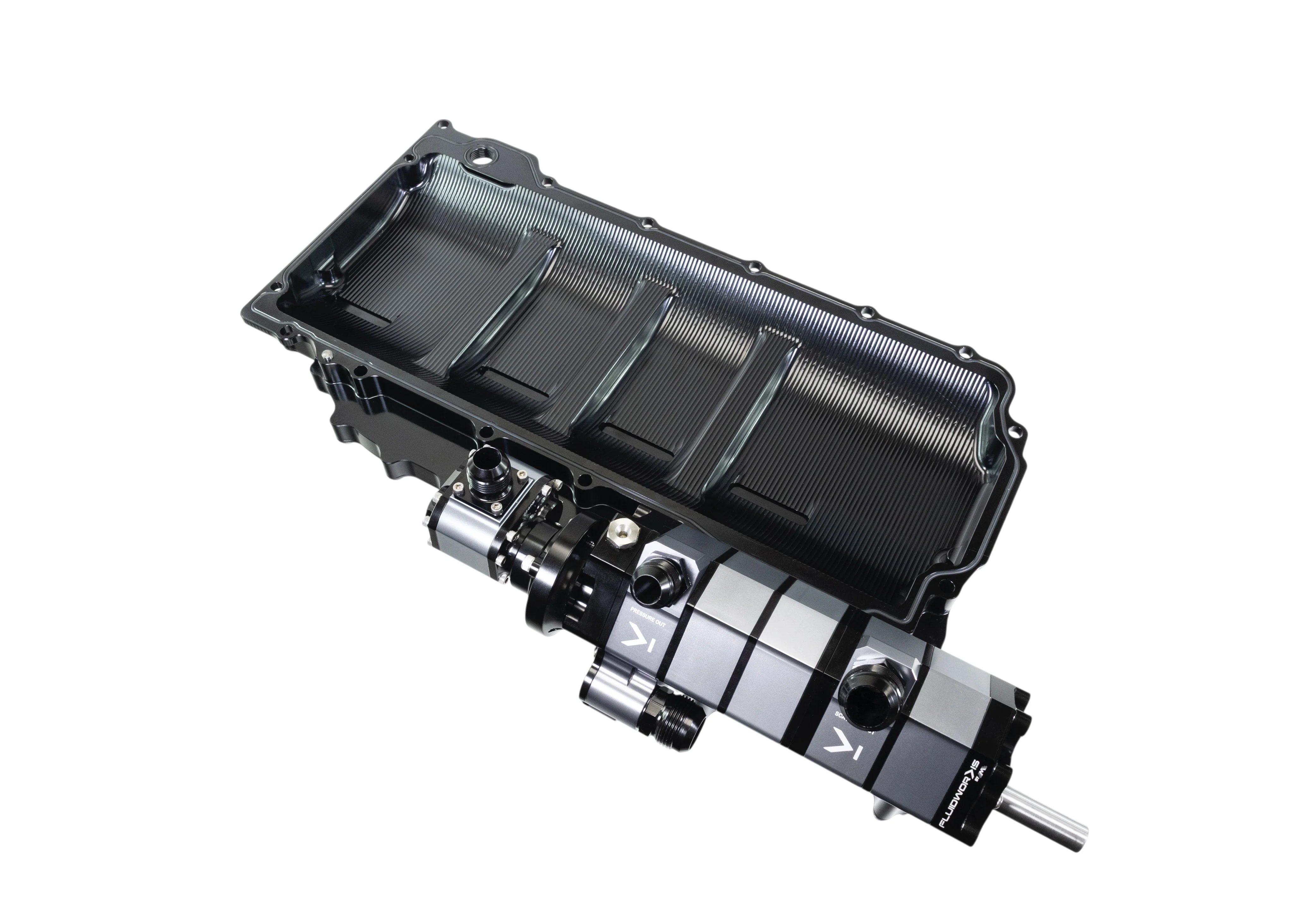

Fluidworks billet oil pan and pump combo removes the need for external scavenge lines from your oil pan to your pump which reduces overall depth of pan, minimizes leak points, maximizes oil scavenging, and more.

Fluidworks oil pumps utilize a durable spur gear design. This allows for excellent and consistent oil flow with unmatched durability on both pressure and scavenge sections. The benefit of a spur gear pump is that it can handle the conditions presented to it without risk of locking up and having premature failure from contamination. Utilizing a tight tolerance housing design paired with a unique gear design, these pumps have proven to run at the top from street car to Pro Mod applications.

This pump is designed to work in conjunction with provided front mandrel which bolts to the front of most ATI and Innovators West balancers. This provides the proper speed and belt configuration with the provided oil pump pulley and belt.

Included:

• Billet Oil Pan w/ drains

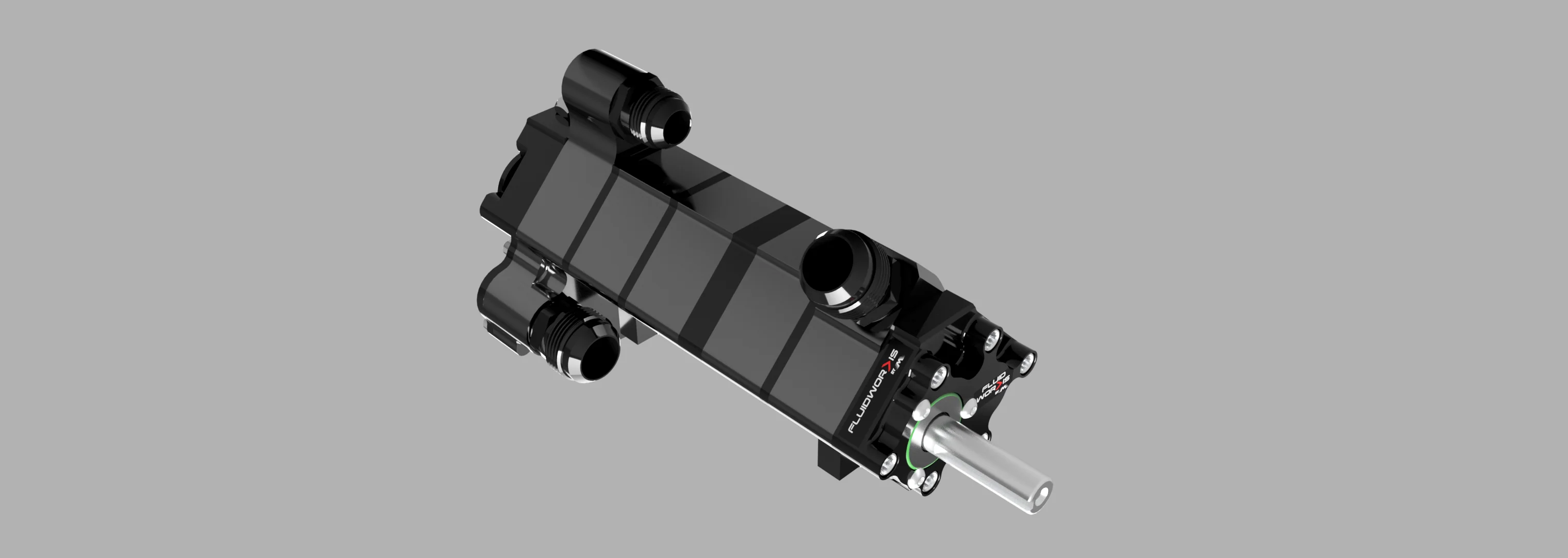

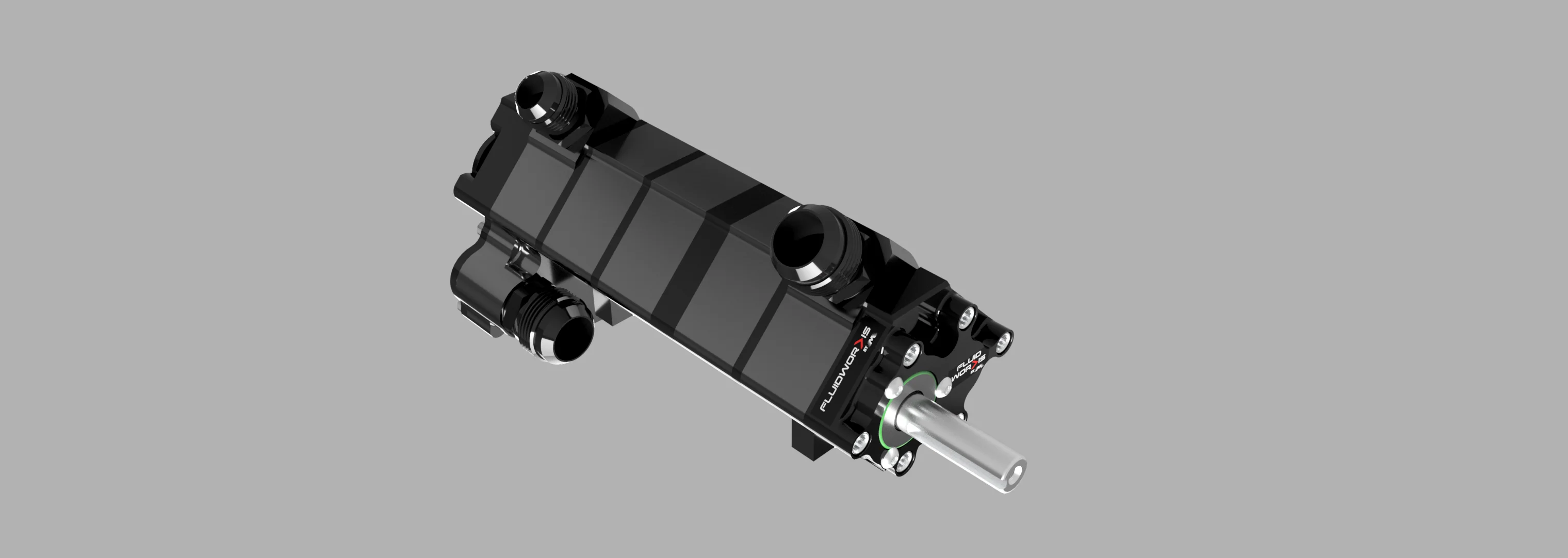

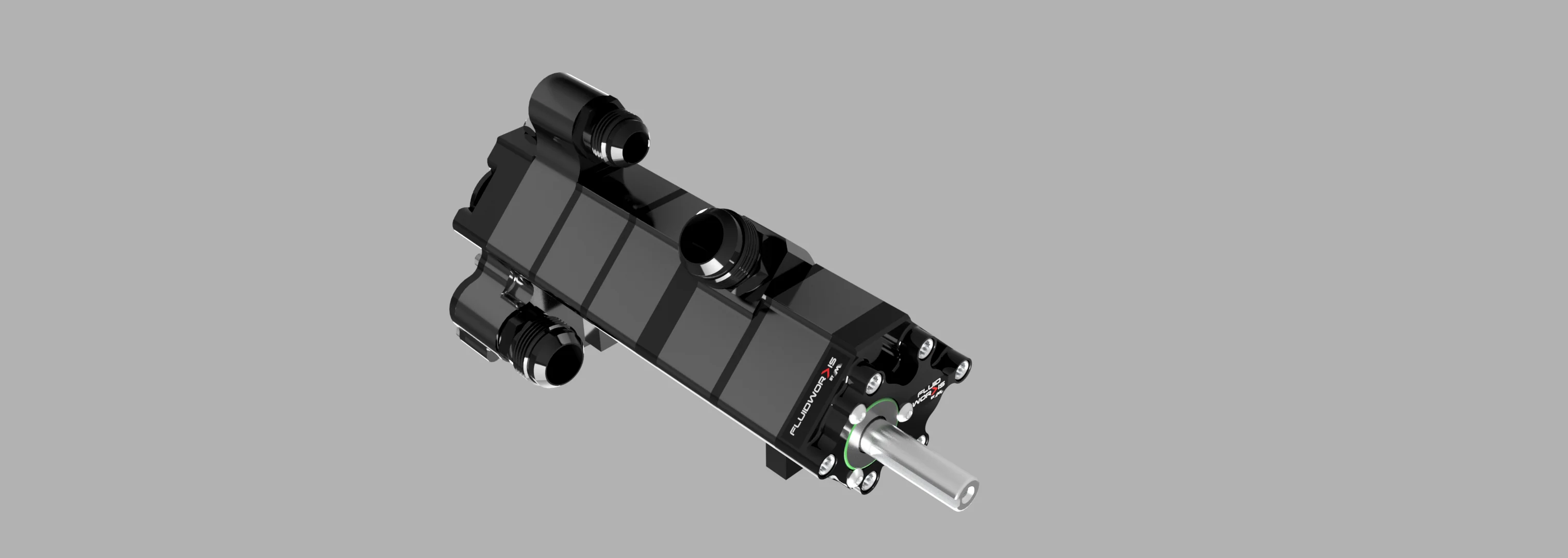

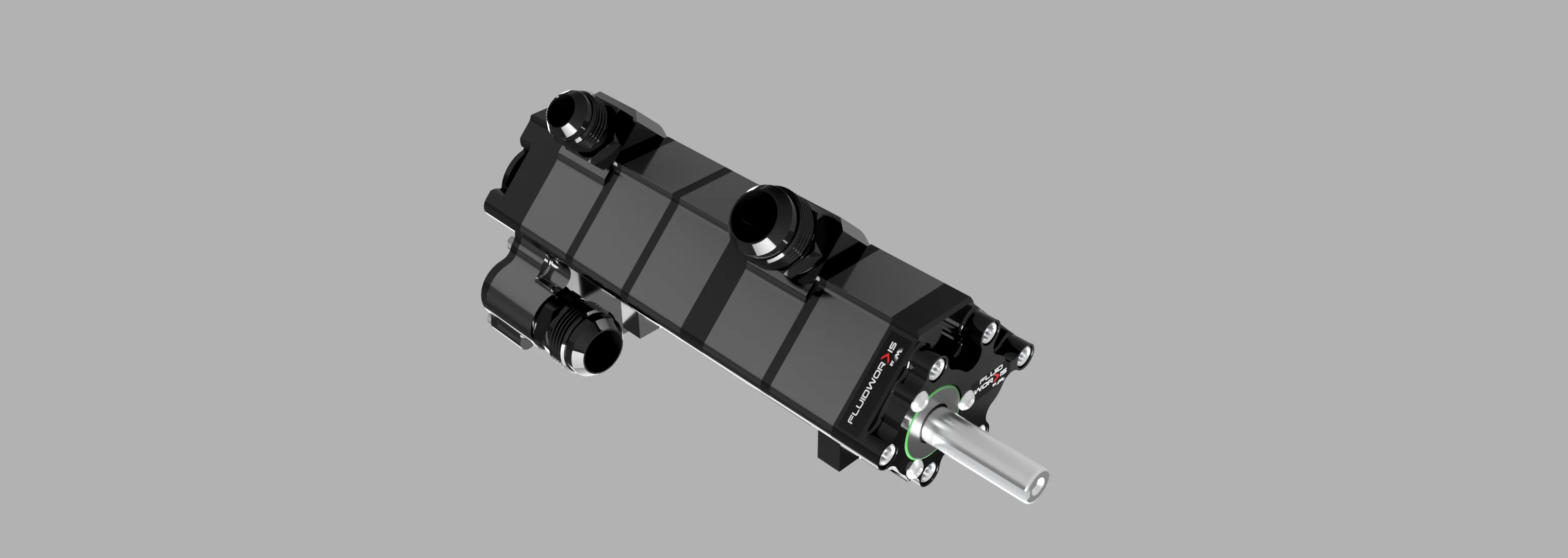

• 5 Stage Pump (choose fitting orientation in options)
• Motion 3 Bolt 18 tooth mandrel
• 36 tooth HTD pulley
• HTD Belt
• 16AN Pressure Inlet Fitting
• 12AN Pressure Outlet Fitting
• 16AN Scavenge Return Fitting

Pump Specs:

• (4) 1.380" Spur Gear Scavenge Sections
• 1.380" Spur Gear Pressure Section
• Standard 5/8" shaft with 3/16" key
• Built in adjustable pressure regulator/bypass
• Optional Rear 3/8" Hex drive for mechanical fuel pump / cable drive

Features:

• Low profile billet oil pan improves frame and ground clearance
• Fits Factory Gen V as well as Noonan LT blocks
• Clears up to 4.125" stroke crankshafts / big block chevy rod ends without modification

• Includes servicable and replaceable scavenge screens to protect your pump
• Scavenge section drains allow you to remove oil from the pan without removing the pan.
• Pan features built in captured oring seal for oil pan rail

• Oring seal for scavenge sections
• Optional mechaincal fuel pump / cable drive rear connection available in options
• Made in the USA


See below Fitting Configurations
